Description
Product Description

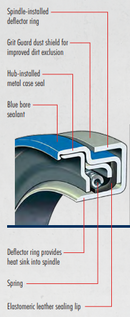

Designed to reduce maintenance and prevent unnecessary wear on expensive spindles, the Grit Guard two-piece design provides effective and lasting protection against contamination. Applicable with 38,000 lbs & 46,000 lbs Eaton, Ford, Freightliner, Kenworth, Meritor, Navistar, Peterbilt, Volvo, GM and Western Star Tandem Axles. Wheel Seal Kit includes: (1) Seal -2106 & (1) Grit Guard Axle Ring -1525.
Specifications
- Part # 392-9131
- Weight: 1.59 lbs./ 0.723 kg.
- Series: Grit Guard.
- Set Contents: (1) 315-1525 & (1) 320-2106
- Bearing Guide: 570-0028/570-0027
- Inner Bearing Cup: 594
- Inner Bearing Cone: 594A
- Outer Bearing Cup: 572
- Outer Bearing Cone: 580
- Universal Axle Tool Head: 555-5071
- Universal Hub Tool Head: 551-5320
Dimensions
- Outside Diameter of Seal: 6.3-in.
- Inside Diameter of Axle Ring: 4.8-in.
- Oil Seal Width: 1.01-in.
Grit Guard Interchange
- SKF#: 47697
- SKF Plus#: 47695
- National#: 370003A(38)
- Tri Seal#: 69799
