Product Description

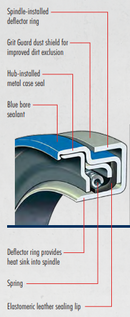

Designed to reduce maintenance and prevent unnecessary wear on expensive spindles, the Grit Guard two-piece design provides effective and lasting protection against contamination. Applicable with a 19,000 lbs. Dana, Eaton, Meritor and Standard Forge axle wheels. Wheel Seal Kit includes (1) Seal - 2109 & (1) Grid Guard Axle Ring - 1507.
Specifications
- Part # 372-7098
- Weight: 1.34 lbs./ 0.61 kg.
- Series: Grit Guard
- Set Contents: (1) 315-1507 & (1) 320-2109
- Bearing Guide: 570-0023
- Inner Bearing Cup: 653
- Inner Bearing Cone: 663
- Outer Bearing Cup: 553X,HM212011
- Outer Bearing Cone: 560, HM212049
- Universal Axle Tool Head: 555-5100
- Universal Hub Tool Head: 551-5313
Dimensions
- Outside Diameter of Seal: 6.0-in.
- Inside Diameter of Axle Ring: 4.0-in.
- Oil Seal Width: 0.886-in.
Grit Guard Interchange
- SKF#: 40136
- SFK Plus#: 40133
- National#: 370036A (38)
- Tri Seal#: 69597
