Description
Product Description

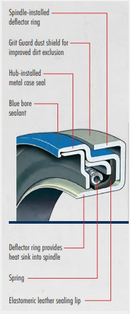

Designed to reduce maintenance and prevent unnecessary wear on expensive spindles, the Grit Guard two-piece design provides effective and lasting protection against contamination. Applicable with a 9,000 lbs. GMC front wheel axle. Wheel Seal Kit includes: (1) Seal -2036 & (1) Grit Guard Axle Ring -1036.
Specifications
- Part # 382-8036
- Weight: 0.76 lbs./ 0.35 kg.
- Series: Standard/Grit Guard.
- Set Contents: (1) 310-1036 & (1) 320-2036
- Bearing Guide: 570-0017, 570-0018, 570-0020, 570-0019
- Inner Bearing Cup/Cone: 39520/39581, HM212011/HM212044 (533X/557A Pre 1959), HM212011/HM212049X-X1, HM212011/HM212047
- Outer Bearing Cup/Cone: 35252/3585, 3720/3782
- Universal Axle Tool Head: 555-5061, 555-5062, 555-5098, 555-5066
- Universal Hub Tool Head: 551-5346
Dimensions
- Outside Diameter of Seal: 4.85-in.
- Inside Diameter of Axle Ring: 3.59-in.
- Oil Seal Width: 0.87-in.
