Description

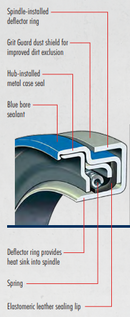

Designed to reduce maintenance and prevent unnecessary wear on expensive spindles, the Grit Guard two-piece design provides effective and lasting protection against contamination. Applicable with a 22,500 lbs. Dana, Eaton, Meritor or Standard Forge axle wheels. Wheel Seal Kit includes: (1) Seal -2110 & (1) Grit Guard Axle Ring -1504.
Specifications
- Part # 372-7097
- Weight: 1.25 lbs./ 0.57 kg.
- Series: Grit Guard.
- Set Contents: (1) 315-1504 & (1) 320-2110
- Bearing Guide: 570-0026
- Inner Bearing Cup: HM218210
- Inner Bearing Cone: HM218248
- Outer Bearing Cup: HM212011
- Outer Bearing Cone: HM212049
- Universal Axle Tool Head: 555-5039
- Universal Hub Tool Head: 551-5412
Dimensions
- Outside Diameter of Seal: 6.0-in.
- Inside Diameter of Axle Ring: 4.60-in.
- Oil Seal Width: 0.818-in.
Grit Guard Interchange
- SKF#: 46305
- SKF Plus#: 46304
- National#: 370025A (38)
- Tri Seal#: 69598
